EJA440E-FCS5G-919DB EJA440E Traditional-mount High Gauge Pressure Transmitter

認証
中国 Great System International Limited 認証
こんにちはQiang。幸せで新しい2021年!私達は今日からの年を働かせ始める。去年の協同を非常に本当にありがとう、私達がそれをよりよく今年することを望みなさい!

—— Alexandr Blagov

フランク、あなたの正直者をありがとう私が望むあなたの会社の信頼できる去年は来年私達のビジネスを一緒に拡張することである。よい休日を過しなさい。

—— Hbabaee

あなたにすべてのこれらの年によって協力し、ずっとあなたの親切なサポートおよび最もよいサービスにそれほど感謝することは非常に素晴らしい!

—— Niloufar Soltani

オンラインです

EJA440E-FCS5G-919DB EJA440E Traditional-mount High Gauge Pressure Transmitter

EJA440E-FCS5G-919DB EJA440E Traditional-mount High Gauge Pressure Transmitter
EJA440E-FCS5G-919DB EJA440E Traditional-mount High Gauge Pressure Transmitter

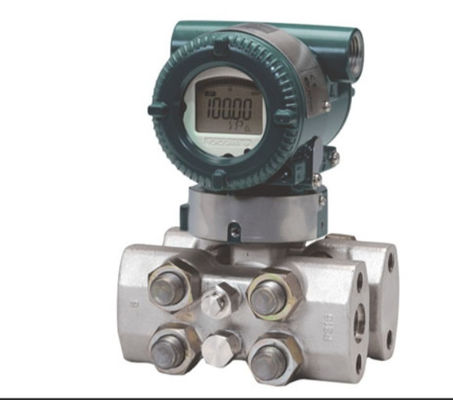

大画像 :  EJA440E-FCS5G-919DB EJA440E Traditional-mount High Gauge Pressure Transmitter

商品の詳細:
起源の場所: 日本
ブランド名: YOKOGAWA
証明: ROHS
モデル番号: EJA440E-FCS5G-919DB/KS26/X2/D3/M01/T09
お支払配送条件:
最小注文数量: 1pc
価格: negotiable
パッケージの詳細: 工場原物
受渡し時間: 8〜10週間
支払条件: T/T
供給の能力: 50PCS/Month
詳細製品概要
モデル: EJA440E-FCS5G-919DB/KS26/X2/D3/M01/T09 応答時間: 90人の氏応答時間
船積みの重量: 10Kg 正確さ: ± 0.055%の正確さ
製造業者: 横川町 安定性: 1 10年ごとの± 0.1%の安定性
証明書: ExidaおよびTUV SIL 2/3は証明した 配置: ローカル変数設定(LP)

EJA440E-FCS5G-919DB EJA440E Traditional-mount High Gauge Pressure Transmitter













Description:



Manufacturer : Yokogawa
Product No. : EJA440E-FCS5G-919DB/KS26/X2/D3/M01/T09
Product type : EJA440E Gauge Pressure Transmitter
Measurement span (capsule) : C = 5 to 32 MPa (720 to 4500 psi)
Wetted parts material : S = F316 SST Cover flange, ASTM CF-8M *1 (C-capsule) 316 SST (D-capsule) Process connector, Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others), Teflon-coated 316L SST Capsule gasket, 316 SST Vent/Drain plug.
Shipping weight : 8 Kg









The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA440E is our traditional-mount high gauge pressure transmitter in the series.











EJA440E Standard features include:



± 0.055% Accuracy
± 0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.







Additional Informaiton:



EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter










EJA440E-JCS4J-917ED
EJA440E-JCS4J-312DD
EJA440E-JCS5J-917DD/NS21/N4
EJA440E-JCS4G-919DB/D3/N4/T09/M11
EJA440E-JCS4G-812DB/FF1/D4/M11/T09
EJA440E-FCS5G-919DB/KS26/X2/D3/M01/T09
EJA440E-JCS5G-919DB/X2/D3/M01/T09/KU22
EJA440E-JCS5G-919EA/KU22/X2/D3/M01/T09
EJA440E-JCS5G-919DB/KU22/X2/M01/T09/D3
EJA440E-JCS5G-919DB/KU22/X2/D3/M01/T09
EJA440E-JCS5G-919DB/KU22/X2/M01/T09/D3/HAC















Important Terms:



1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: Yokogawa & Japan

4. Delivery lead time: 8-10 weeks

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air
