| モデル: | EJA438E-DASCG-912DB-WJ13B2SW00-BA22 | 製品名: | 遠隔ダイヤフラムのシールが付いているゲージ圧の送信機 |
|---|---|---|---|
| 応答時間: | 200人の氏応答時間 | 正確さ: | ± 0.2%の正確さ |
| 証明書: | ExidaおよびTUV SIL 2/3は証明した | 毛管: | 活動的な毛管盛り土流動密度の補償 |
| Seeting: | ローカル変数設定（LP） | 製造業者: | 横川町 |

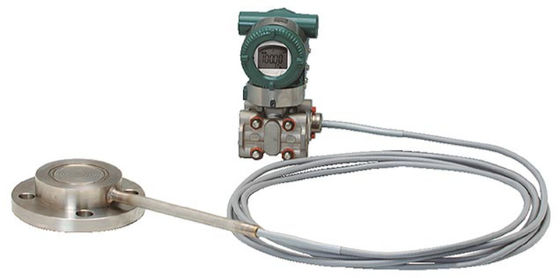

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal
Description:
Manufacturer : Yokogawa
Product No. : EJA438E-DASCG-912DB-WJ13B2SW00-BA22
Product Type : Diaphragm sealed gauge pressure transmitter
Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span (capsule) : A = 0.06 to 3.5 MPa (8.6 to 500 psi)
S : Always S
C : Always C
Coverflange bolts and nuts material : G = 316L SST
Installation : 9 = Horizontal piping type and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 0 = G 1/2 female, one electrical connection without blind plugs
Integral indicator : D = Digital indicator
Mounting bracket : A
Process connection style : W = Flush type
Flange rating : A1 = ANSI class 150
Process connection size (Process flange size) : 2 = 2-inch (50 mm)
Flange material : B = 304 SST
Gasket contact surface : 1 = Serration (for ANSI flange with wetted parts material SW only) Flat (no serration)
Wetted parts material : SW = [Diaphragm] = 316L SST, [Others] = 316L SST
Flushing connection ring : 0 = Ring = None, Vent/Drain plugs = -, Material = -
Extension : 0 = None
Fill fluid : A = Process temperature : For general use (silicone oil), Ambient temperature = –10 to 250°C –10 to 60°C
Capillary connection : A = Side of diaphragm seal unit
2 : Always 2
Capillary length : 7 = 7m
Weight : approx. 9.8 Kg
Shipping Weight : 11 Kg
EJA438E Standard features include:
± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
Common Models:
| EJA438E-DASCG-912DB-WJ13B2SW00-BA22 |
| EJA438E-JBSCG-917DJ-WA22C2TW00-BA25 |
| EJA438E-JASCG-917DJ-WA22C1SW00-BA25 |
| EJA438E-DASCC-91DN-WA12C2TW00-AA25 |
| EJA438E-JASCG-919EB-WD22C2SW00-AA23 |
| EJA438E-JASCG-919DB-WD23B2SW00-BA2 |
| EJA438E -DASCC-91DN-WA12C2TW00-AA25 |
| EJA438E-DASCC-917DN-WA12C2TW00-AA25 |
| EJA438E-JASCG-912NN-WD43C2SW00-AA22/D4 |
| EJA438E-JASCG-912DN-WD43C2SW00-BA22/D4 |
| EJA438E-DBSCG-912DB-WZ2B2HW00-AA25/D3/N4 |
| EJA438E-JASCJ-914EB-WA22C1SW00-CA23/KU22/T53 |
| EJA438E-FBSCG-919DB-WA12C1SW00-1A2A/X2/D3/M2W/T52 |
| EJA438E-JBSCG-917DJ-WA22C2TW00-BA25-KU22/D4/A/M2W/T56 |
|
EJA438E-JASCG-917DJ-WA22C1SW00-BA25/KU22/D4/A/M2W/T53 |
