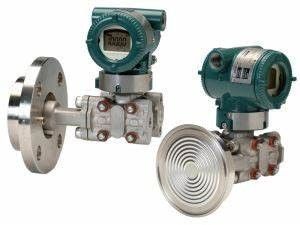

EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter

EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter
EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter

大画像 :  EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter

商品の詳細:
起源の場所: 日本
ブランド名: YOKOGAWA
証明: ROHS
モデル番号: EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
お支払配送条件:
最小注文数量: 1pc
価格: negotiable
パッケージの詳細: 工場原物
受渡し時間: 8〜10週間
支払条件: T/T
供給の能力: 50PCS/Month
詳細製品概要
モデル: EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 重量: 8.3kg
船積みの重量: 11kg 測定のスパン(カプセル): 100kPa (4から400 inH2O)への1つ
取付け: 取付けられるフランジ 製造業者: 横川町
製品名: フランジによって取付けられる差動圧力送信機 HSコード: 90261000
保証: 1年

EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter









Description:





Manufacturer : Yokogawa

Product No. : EJA210E-JHS4J-912DN-EA14A1SE01-B/D4

Product type : Flange Mounted Differential Pressure Transmitter

Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

Measurement span (capsule) : H = 5 to 500kPa (20 to 2000 inH2O)

Low pressure side Process connections : 4 = with 1/2 NPT female process connector

Coverflange bolts and nuts material : J = B7 carbon steel

Installation : 9 = Horizontal piping type and left side high pressure

Amplifier housing : 1 = Cast aluminum alloy

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs

Flange rating : A1 = ANSI class 150

Gasket contact surface : 1 = Serration (for ANSI flange only)

Wetted parts material (high pressure side) : WE = Hastelloy C-276 diaphragm, 316 SST, 316 SST pipe.

Extension : 5 = Length (X2) = 150mm

Fill fluid : B = For general use (Silicone oil), –40 to 120°C process temperature, –40 to 85°C ambient temperature.

Shipping Weight : 18 Kg









Product advantages:



1.The high performance flange mounted differential pressure transmitter EJA210E can be used
to measure levels of densities of solidifying or precipitating liquids.



2.EJA210E outputs a 4 to 20 mADC signal corresponding to the measured differential
pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on
the integral indicator or remotely monitored via BRAIN or HART communications.



3.All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power
types, are certified as complying with SIL 2 for safety requirement.











Product applications:



EJA210E-JMS4J-912DN-EJ14A2SE01-B
EJA210E-JMS5J-912NN-WA13A1SW00-B/D4
EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4
EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
EJA210E-JMS3J-919EN-WA12B2WW00-B/D4
EJA210E-JHS4J-917DN-EA14B1SE03-B/D3
EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4
EJA210E-JMS4J-912DN-WA12A2WW00-B/D4
EJA210E-JMS5G-917EN-WD22C2WW00-B
EJA210E-JMS5G-919DN-WA12C1WW00-B/KU22/D4/X2/M0W/T52
EJA210E-JHS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56
EJA210E-JMS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56
EJA210E-JMS4G-92DDN-WA23C2HW00-B/KS21/A/D4/M1W/T56









EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter
