| MOQ: | 1 |
| 価格: | 交渉可能 |
| 標準パッケージ: | carton |
| 配達期間: | on request |
| 決済方法: | T/T |
| 供給能力: | 1~1000pcs |
Manufacturer : Rosemount
Product no : 1056-03-22-32-AN
Product type : 1056 Dual channel transmitter
32-Measurement 2 : pH/ORP/ISE
AN-Communication : 4-20 mA analog
Temperature: 32 to 131 °F (0 to 55 °C)
Temperature for Turbidity: 32 to 122 °F (0 to 50 °C)
Relative Humidity: 5 to 95% (non-condensing)
Storage Temperature: -4 to 140 °F (-20 to 60 °C)
Enclosure Material: Polycarbonate.
Rating: Type 4X and IP65.
Conduit openings: 1/2 in. or PG 13.5 conduit fittings.
Dimensions: 15.5 cm x 15.5 cm x 13.1 cm
Weight : 2 kg
Shipping Weight : 3 Kg
Features:
Auto-Recognition of Sensor Boards
Large Customizable Display
Visibility of Process Parameters
Specification:

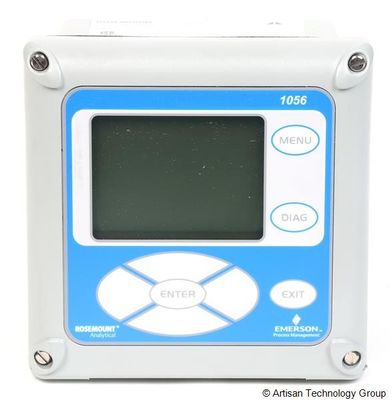

The Emerson / Rosemount Analytical 1056 Dual-Input Intelligent Analyzer offers single or dual sensor input with an unrestricted choice of dual measurements. This multi-parameter instrument offers a wide range of measurement choices supporting most industrial, commercial, and municipal applications. The modular design allows signal input boards to be field replaced making configuration changes easy. Conveniently, live process values are always displayed during programming and calibration routines.
Common Models:
| 1056-01-25-38-AN | 5081-P-HT |
| 1056-01-20-38-AN | 400-12-36-60 |
| 1056-01-22-38-AN | 23550-00 |
| 1056-03-22-32-AN | 24091-02 |
| 1057-02-20-32-42 | 400-11 |
| 1057-02-20-30-40 | 142-03-14-54 |
| 228-03-20-54-61 | 140-54 |
| 3900-1-10 | 23730-00 |
| 3900-2-10 | 23731-00 |
| 396P-02-10-55 | 9310120 |
| 396P-02-10-55-41 | 23724-00 |
| 389-01-10-54 | 400-13-54-50 |
| 389-01-10-55 | 400-12-54-50 |
| 389-02-10-54 | 400VP-11 |
| 499ADO-54-VP | 24263-00 |
| 5081-C-HT-21-67 | 24091-00 |
|
|
