商品の詳細:
お支払配送条件:
|
| モデル: | EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W | 配置: | ローカル変数設定（LP） |
|---|---|---|---|
| 正確さ:: | ± 0.2%の正確さ | 製造業者: | 横川町 |
| パッキング: | 横川町の標準的なカートン | 製品名: | 遠隔ダイヤフラムのシールが付いているDPの送信機 |
| 応答時間: | 200氏 | 毛管: | 活動的な毛管盛り土流動密度の補償 |

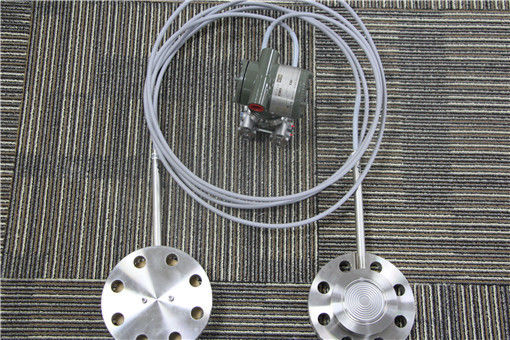

EJA118E-FHSCJ-914DB EJA118E DP Transmitter with Remote Diaphragm Seals
Description:
Manufacturer : Yokogawa
Product No. : EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W
Product type : Diaphragm Sealed Differential Pressure Transmitter
S : always S
C : always C
Coverflange bolts and nuts material : G = 316L SST
Installation : 9 = Horizontal piping type and left side high pressure
Electrical connection : 4 = M20 female, two electrical connections without blind plugs
Integral indicator : D = Digital indicator
Mounting bracket : N = None
Process connection style : W = Flush type
Flange rating : A4 = ANSI class 600
Process connection size (Process flange size) : 2 = 2-inch (50 mm)
Flange material : C = 316 SST
Gasket contact surface : 2 = Flat (no serration)
Wetted parts material : SW = 316L SST [Diaphragm], 316L SST [Others]
Flushing connection ring : 0 = None
Extension : 0 = None
Weight : 17.6 Kg
Shipping Weight : 23 Kg
Additional Informaiton:
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.
EJA118E features include:
± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
Common Models:
| EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4 |
| EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4 |
| EJA118E-FMSCG-914DJ-WA13B2TW00-AA23/D3/M2W |
| EJA118E-JMSCC-910DB-WA13B2SW00-AA24/TF1/HE |
| EJA118E-JMSCG-919EJ-WD23C2HW00-BA23/KU22/X2/N4 |
| EJA118E-JMSCG-919EJ-WD23C2SW00-BA23/KU22/X2/N4 |
| EJA118E-JMSCG-919EJ-WD23C2SW00-BA2A/KU22/X2/N4 |
| EJA118E-FMSCG-919DB-WA43C1SW00-2A24/X2/M2W/T58 |
| EJA118E-FMSCG-919DB-WA13C1SW00-1A2A/X2/M2W/T52 |
| EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W |
| EJA118E-JMSCJ-919DB-WA42C2SW00-AA23/KS21/D3 |
| EJA118E-JMSCJ-919DB-WA22C2SW00-AA27/KS21/D3 |
| EJA118E-JMSCG-919DB-WA22C1SW00-BA26/KS21/M2W |
| EJA118E-FHSCG-919DN-WA23C2SW00-BA2A/KS26/T56 |
| EJA118E-FMSCG-919DB-WA13C1SW00-EA25/KS26/X2/D4/M2W/T52 |
| EJA118E-JMSCG-92DDJ-WA23C2TW00-AA25/KS21/A/D4/M2W/T56 |
| EJA118E-JMSCG-93DDB-WA12C1SW00-BA24/KU22/D4/M2W/T52 |
| EJA118E-JMSCG-93DDB-WA12C1SW00-EA24/KU22/D4/M2W/T52 |
| EJA118E-JMSCG-924DB-WA23C2SW00-AA25/KS21/D4/M2W/T56 |
| EJA118E-FMSCJ-914DB-WA22B1SW00-AA25/KS26/D4/M2W |
| EJA118E-FMSCG-919DB-WA23C1SW00-AA25/X2/D4/T56/M2W |
| EJA118E-FMSCG-919DB-WA23C1SW00-BA25/KS26/X2/D4/T56/M2W |
| EJA118E-FMSCG-919DB-WA13C1SW00-BA25/KS26/X2/D4/T52/M2W |
| EJA118E-JMSCG-919DB-WA12C1SW00-AA25/X2/D4/M2W/T52/KU22 |
