EJX110A-EMS5G-919DB/KS21/D4 EJX110A Differential Pressure Transmitter

EJX110A-EMS5G-919DB/KS21/D4  EJX110A Differential Pressure Transmitter
EJX110A-EMS5G-919DB/KS21/D4  EJX110A Differential Pressure Transmitter EJX110A-EMS5G-919DB/KS21/D4  EJX110A Differential Pressure Transmitter

大画像 :  EJX110A-EMS5G-919DB/KS21/D4 EJX110A Differential Pressure Transmitter

商品の詳細:
起源の場所: 日本
ブランド名: YOKOGAWA
証明: ROHS
モデル番号: EJX110A-EMS5G-919DB/KS21/D4
お支払配送条件:
最小注文数量: 1pc
価格: negotiable
パッケージの詳細: 工場原物
受渡し時間: 8〜10週間
支払条件: T/T
供給の能力: 50PCS/Month
詳細製品概要
モデル: EJX110A-EMS5G-919DB/KS21/D4 船積みの重量: 7kg
正確さ:: ± 0.04%の正確さ(利用できる0.025%の正確さの選択) 製造業者: 横川町
MWP: 3,600のpsi 製品名: 差動圧力送信機
応答時間: 90氏 安定性: 安定性1 15年のごとの± 0.1%

EJX110A-EMS5G-919DB/KS21/D4 EJX110A Differential Pressure Transmitter







Description:



Manufacturer : Yokogawa

Product No. : EJX110A-EMS5G-919DB/KS21/D4

Product Type : Differential Pressure Transmitter

Output signal : E = 4 to 20 mA DC with digital communication (HART 5 protocol)

Measurement span (capsule) : M = 0.5 to 100 kPa (2 to 400 inH2O)

Wetted parts material : S = Cover flange and process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm)F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST

Process connections : 5 = without process connector (1/4 NPT female on the cover flanges)

Bolts and nuts material : G = 316L SST

Installation : 9 = Horizontal piping and left side high pressure

Amplifier housing : 1 = Cast aluminum alloy

Integral indicator : D = Digital indicator

Calibration units : D4 = M calibration (kgf/cm2 unit)

Weight : 2.8 Kg

Shipping Weight : 8 Kg





Additional Informaiton:

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.

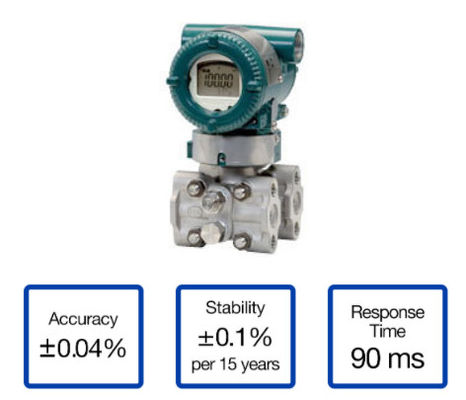

EJX110A features include:

  • ± 0.04% Accuracy (0.025% Accuracy option available)
  • ± 0.1% per 15 years Stability
  • 90 ms Response Time
  • 3,600 psi MWP
  • Exida and TUV SIL2 / SIL3 Certified
  • Local Parameter Setting (LPS)









Models Reference:



EJX110A-EMS5G-919DB/KS21/D4
EJX110A-EMS4G-919DB/KU22/N4
EJX110A-EMS4J-919EN/KU22/M11/T13
EJX110A-EMS5G-92DDN/KU22/D3/T13
EJX110A-FHS5G-914DJ/KS26/M01/T13/D1
EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
EJA110E-JMS5G-917DJ/KF22/D4/X2/C1/M01/T13/HC/HG
